When comparing the American F-35 vs the Chinese J-31, we review the capabilities, performance, and key differences between two of the world’s most significant fifth-generation stealth fighters. While the American F-35 has already proven itself with multiple variants serving in several air forces, the Chinese J-31 (also referred to as FC-31) is still in its prototype stage, with much speculation surrounding its capabilities. This article examines both aircraft in detail, from design to combat range, speed, and engine power.
The Origins of F-35 and J-31

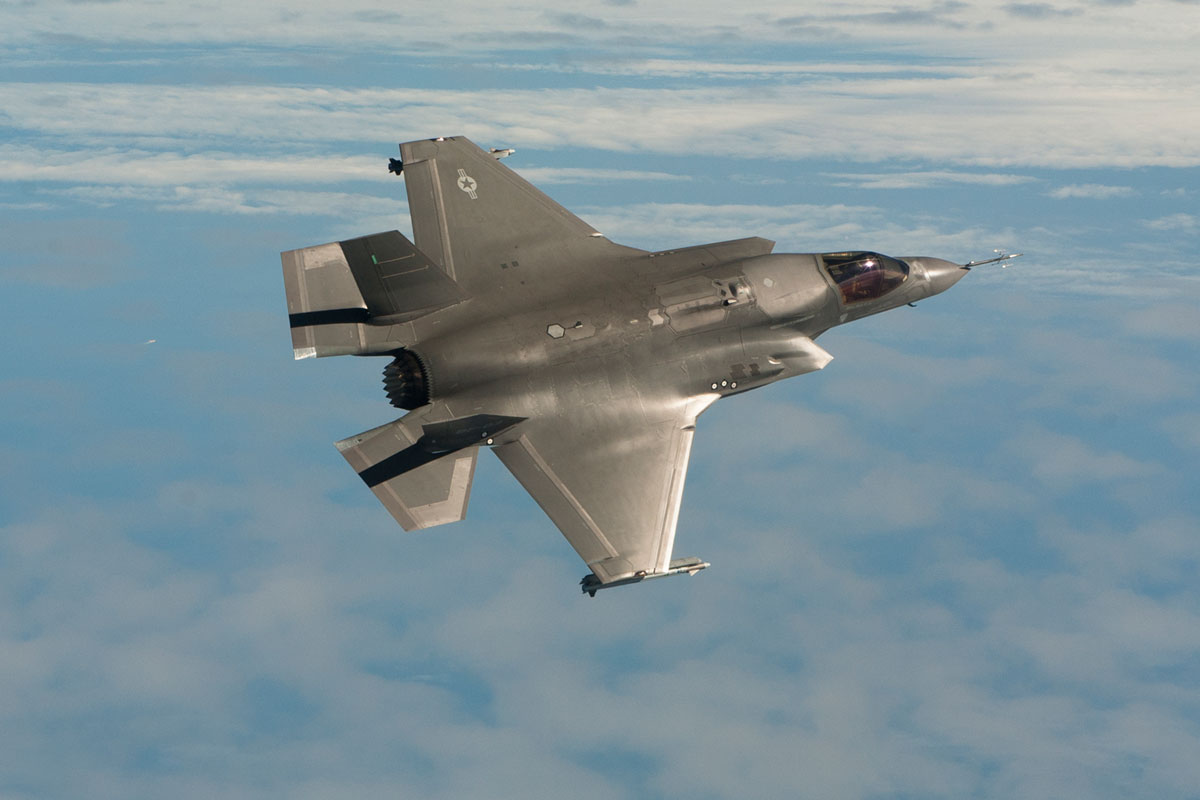

The F-35 Lightning II was designed under the Joint Strike Fighters (JSF) programme to serve as a versatile, multi-role aircraft. Its three variants (F-35A for conventional takeoff, F-35B for short and vertical landing, and F-35C for carrier operations) showcase its adaptability. By 2024, the F-35 had been deployed in numerous air forces, including the US, UK, and Israel, proving its effectiveness in modern combat.
In contrast, the Chinese J-31 is still in its development phase. Initially unveiled in 2012 as the FC-31, this aircraft is China’s attempt to develop a fifth-generation stealth fighter for export and possibly to bolster its air force.

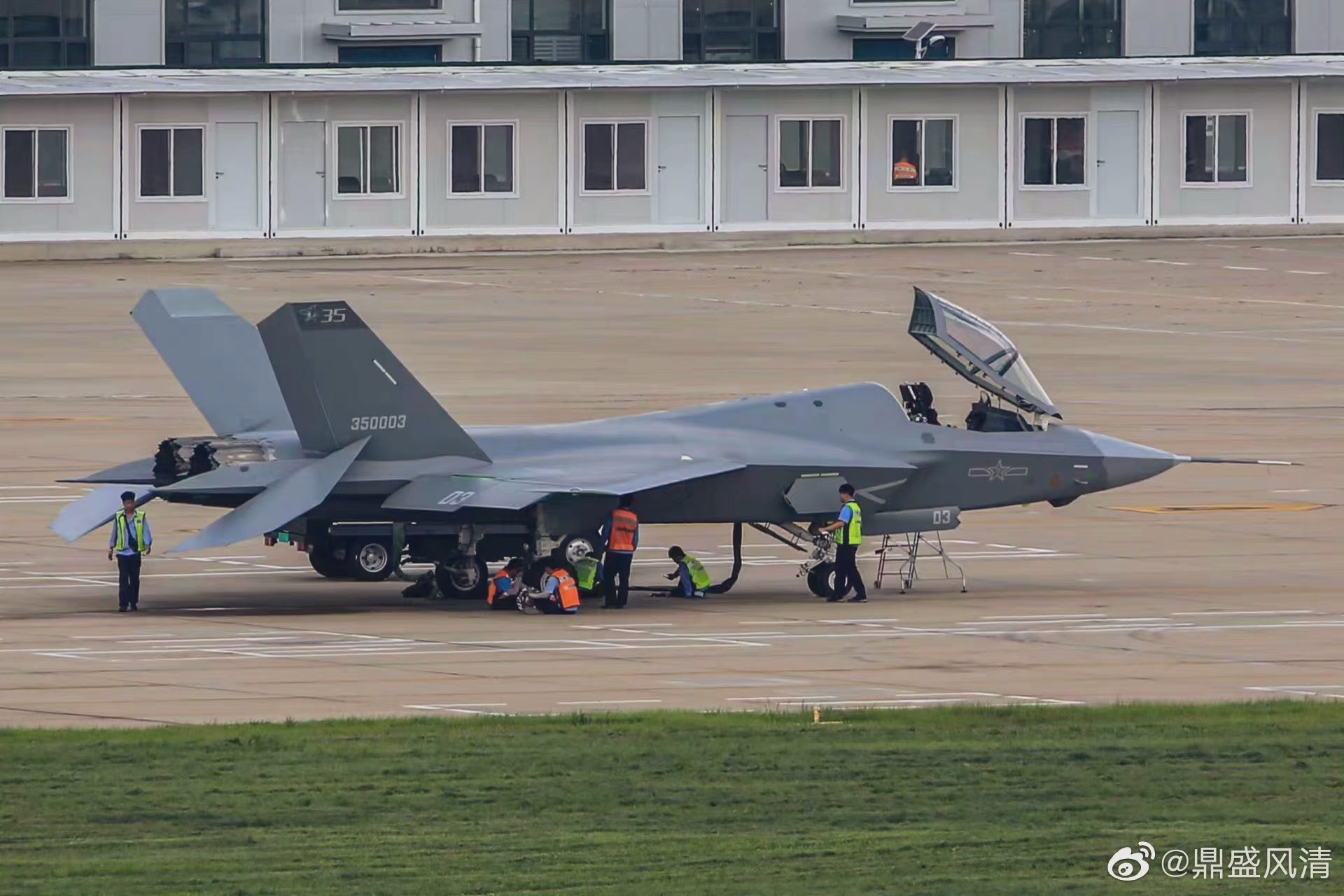

The naval variant, unofficially called the J-35, is expected to complement China’s future aircraft carriers. The comparison between the American F-35 and the Chinese J-31 thus primarily highlights the operational readiness of the F-35 against the experimental status of the J-31.
Engine and Power Comparison
The engine design has a major effect on a fighter jet’s performance. The American F-35 is powered by a single Pratt & Whitney F135 engine, which provides 43,000 pounds of thrust with an afterburner. This engine makes the F-35 one of the most powerful fighters globally, with impressive acceleration, combat load capacity, and agility. Its thrust-to-weight ratio at maximum takeoff weight (MTOW) with 50% fuel is around 0.58 to 0.89, depending on the variant.
The Chinese J-31 currently uses two WS-13 engines based on Russia’s RD-93 design. Together, they produce about 38,840 pounds of thrust with afterburners. This output is less than the F-35’s single engine.
However, the J-31’s lighter frame helps maintain excellent speed and agility. Its thrust-to-weight ratio is still lower, between 0.50 and 0.76 depending on fuel. This power difference provides the F-35 a clear advantage in raw thrust.
It also allows the F-35 to carry heavier payloads with more agility. In later iterations, China intends to incorporate the WS-19 engine. This upgrade could reduce the performance gap between the two jets.
When comparing the American F-35 vs the Chinese J-31, weight and size are key factors. The F-35C, designed for carrier operations, is the heaviest variant of the F-35 series. Its empty weight is around 34,500 pounds, with a maximum takeoff weight (MTOW) of 70,000 pounds. This heavier frame is due to the additional strengthening required for carrier landings.
J-31 is around five feet longer
Analysts estimate the Chinese J-31’s maximum takeoff weight at 62,000–65,000 pounds, and its naval variant’s empty weight at about 38,000 pounds. The J-31’s slightly lighter frame may offer advantages in agility; however, the F-35’s superior engine offsets the additional weight.
The J-31 also plays a role in this comparison. The J-31 is around five feet longer than the F-35, which could impact its aerodynamic performance. Additionally, China’s use of simpler materials, like painted-on radar-absorbent material (RAM), suggests the J-31 may not be as efficient in stealth operations as the F-35, which has integrated these materials into its structure.
The combat radius range of a fighter jet is critical in determining its effectiveness in long-range missions. The American F-35 boasts an impressive combat radius of around 770 miles, thanks to its large internal fuel capacity of 19,000 pounds. Its top speed reaches Mach 1.6 at altitudes of up to 50,000 feet. This combination of range and speed ensures the F-35 can carry out extended missions without the need for refuelling.
By comparison, the Chinese J-31 has a slightly shorter combat radius, speculated to be around 700 miles. Its top speed is estimated to be Mach 1.8 at an altitude of 52,000 feet, slightly faster than the F-35. However, the J-31 is believed to carry less fuel, possibly around 14,000 to 16,000 pounds. This limitation in internal fuel capacity raises questions about the claimed combat range and whether it can truly match the F-35 in extended operations.
Stealth Capabilities
Modern fifth-generation fighter jets, like the American F-35, with their striking features, are often regarded as the benchmark. Advanced radar-absorbent materials (RAM), baked into the F-35’s structure, significantly reduce its radar cross-section (RCS) from all angles. Its Electro-Optical Targeting System (EOTS) further enhances its stealth by providing long-range tracking and precision targeting without exposing the aircraft to radar detection.
The Chinese J-31 uses painted-on RAM, which is less effective than the F-35’s integrated materials. China’s EOTS works more like an infrared search and track system.
This system is effective mainly from the aircraft’s front. This variation could mean that the J-31 is less capable of remaining undetected during complex, multi-directional engagements.
Production and Operational Status
One of the important differences between the American F-35 and the Chinese J-31 lies in their production and operational status. By 2024, over 890 F-35s have been produced, and they are actively serving in various air forces worldwide, including the US, UK, and Japan. The F-35 is battle-proven, having participated in multiple conflicts and military exercises, making it a reliable choice for modern air forces.
In contrast, the Chinese J-31 remains in the prototype stage, with only a few units produced since its first flight in 2012. China has yet to announce any formal production plans or operational deployment of the J-31. This lack of operational experience raises concerns about the aircraft’s combat readiness and reliability in real-world scenarios.
Conclusion: American F-35 vs Chinese J-31
In the debate of the Am5 vs the Chinese J-31, it is clear that the F-35 holds several advantages. It boasts superior engine power, greater operational range, and advanced stealth capabilities. Furthermore, the F-35’s battle-proven status and large-scale production make it the most reliable and effective fighter jet.
While the Chinese J-31 shows promise, especially with potential engine upgrades and further development of its stealth features, it remains largely untested and experimental. China will likely continue its ambitions to produce a viable fifth-generation stealth fighter, but the J-31 still needs to improve its combat effectiveness and operational readiness before it can match the American F-35.
