Russia’s military history is filled with innovative, albeit unconventional, weapons. Among these, the VA-111 Shkval underwater rocket stands out as a Cold War marvel. Originally developed in the 1970s, this supercavitation torpedo is now being reconsidered for modern naval warfare, especially in the age of unmanned underwater vehicles (UUVs) and naval drones.
What is the Shkval Underwater Rocket?

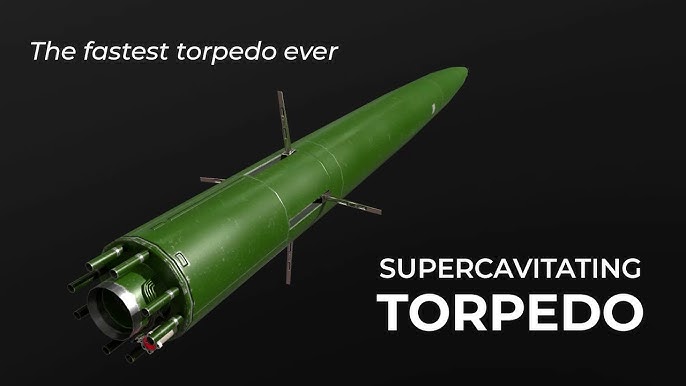

The VA-111 Shkval is a high-speed torpedo capable of reaching speeds of up to 250 mph (400 km/h) underwater. This makes it one of the fastest underwater weapons ever created. Developed during the Soviet Era, the Shkval uses a revolutionary technology called supercavitation to achieve such incredible speeds.
Supercavitation is a hydrodynamic phenomenon where a gas bubble forms around an object moving through water, drastically reducing drag. While cavitation is typically a problem for engineers—causing damage to ship propellers and underwater systems—the Shkval turns this into an advantage. By generating a gas bubble around itself, the torpedo effectively “flies” through water with minimal resistance.
The Science Behind Shkval Supercavitation

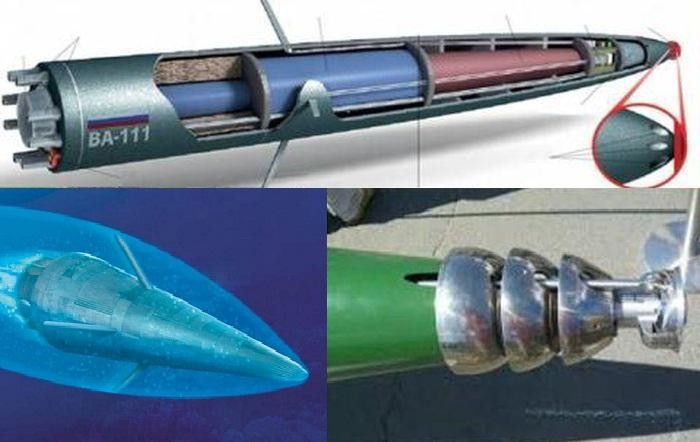

Professor Georgy Logvinovich, a Soviet scientist specialising in high-speed hydrodynamics, pioneered the concept of supercavitation. His team at Research Institute No. 24 (now the GNPP Region) developed the technology by combining a cavitator at the torpedo’s nose with a hydrojet engine.
The cavitator creates the gas bubble, while the hydrojet engine propels the torpedo forward. Additionally, engineers vented the rocket motor’s hot exhaust gases through the nose, further enhancing the supercavitation effect. This combination allowed the Shkval to achieve speeds previously thought impossible for underwater weapons.
Development Challenges and Breakthroughs
Developing the Shkval was no simple feat. The project, codenamed M4, faced numerous technical hurdles and setbacks. Initial tests in 1964 at Lake Issyk-Kul in Kyrgyzstan and later in the Black Sea revealed significant issues, including frequent malfunctions and limited manoeuvrability.
By 1972, the project was on the verge of cancellation. However, a modified version emerged in 1975, leading to the pre-production VA-111 Shkval. This final design could travel at speeds over 200 knots (370 km/h) and strike targets up to 13 kilometres away. It could also carry either conventional or nuclear warheads, making it a formidable weapon.
Limitations of the Shkval
Despite its impressive speed, the Shkval had several drawbacks. Its range was relatively short, and its poor manoeuvrability made it difficult to steer accurately. Additionally, the torpedo produced extreme noise levels, making it highly detectable and a potential liability for the submarine launching it. These limitations made the Shkval a high-risk weapon, especially in its conventional warhead variant introduced in the 1990s. However, its sheer speed and destructive power kept it in the Russian Navy’s arsenal.
Why the Shkval is Relevant Today
In the modern era of naval warfare, unmanned underwater vehicles (UUVs) and drones are becoming increasingly important. The Shkval’s unique capabilities make it a potential candidate for resurrection. Russia has a history of reviving Soviet-era designs and adapting them for modern use, and the Shkval could be next.
Defence analysts in Moscow have speculated that Shkval is “back on the table.” With ongoing conflicts like the war in Ukraine, Russia may see value in deploying this high-speed torpedo against enemy forces. Its ability to strike quickly and with devastating force could make it a game-changer in underwater combat.
The Future of Shkval Supercavitation Technology
The Shkval’s supercavitation technology remains a cutting-edge innovation. While the original design had limitations, modern advancements could address these issues. Improved guidance systems, longer ranges, and reduced noise levels could make the Shkval a more versatile and effective weapon.
Moreover, the principles of supercavitation could be applied to other underwater systems, such as UUVs and high-speed submarines. This would provide Russia a significant advantage in underwater warfare, where speed and stealth are critical.
Conclusion
The VA-111 Shkval underwater rocket is a testament to Soviet engineering ingenuity. Despite its limitations, its incredible speed and destructive power make it a weapon worth revisiting. As Russia continues to modernise its military, Shkval could play a key role in future naval conflicts. Whether the Shkval makes a full comeback remains to be seen. However, Russia’s capacity for adaptation and innovation guarantees that this Cold War relic will endure.
